AU Polaris 6 Gen 2 - Vehicle Manual

This article is the operator's manual for the Polaris 6 Gen2 motorhome - Australia Self Contained (JUCY / Star RV). It covers keys, fire extinguisher and smoke alarm, starting the vehicle, windows and vents, entry door, outdoor step, seatbelts and baby seats, the 240-volt and 12-volt electrical systems, microwave, fresh water, grey water, water pump, hot water heater, toilet use and cassette, gas bottle, stove top and grill, heater and air conditioner, fridge (3-way and 2-way), lights, television, bed conversion, awning, diesel fuel, AdBlue, changing a tyre, and safety and operational features.

Need-to-know

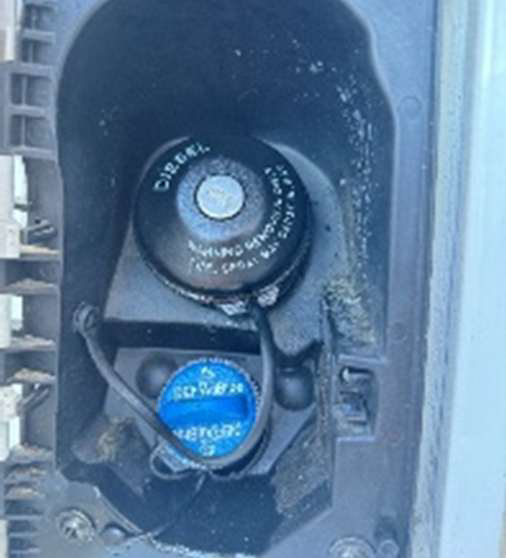

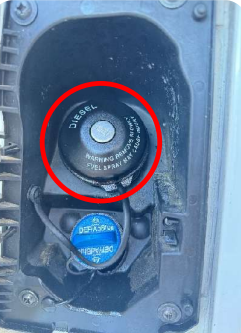

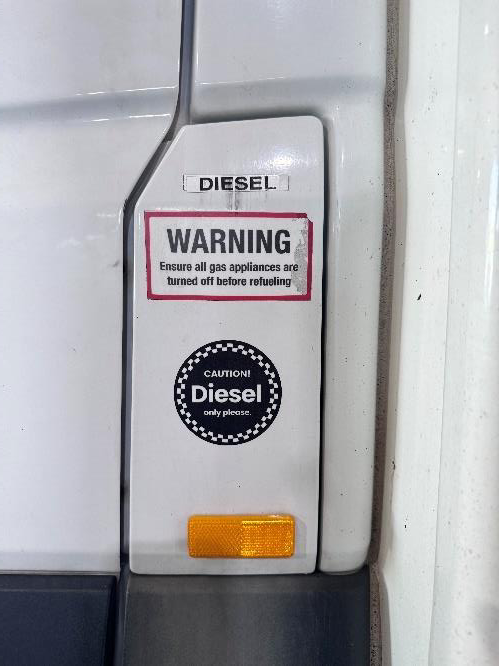

• Fuel type: Diesel only. The fuel cap is marked "DIESEL" and is unlocked using the vehicle diesel key. If filled with unleaded, water, or AdBlue - do not start the engine. Call STAR RV Roadside Assistance immediately.
• AdBlue: Required every 2,500 km. The AdBlue filler cap is below the diesel filler cap. Low level triggers a dashboard warning. Failure to refill causes limp mode. Do NOT add AdBlue to the diesel tank.
• 240-volt: Required for microwave, power points, and air conditioner. Plug in every second night to keep the house battery charged. Two circuit breakers  - located outside the motorhome.
• 12-volt panel: Located on the side wall as you enter. Hold the red power button for approximately 3 seconds to turn on. Must be on for water pump and lights to operate.
• Water pump: Press the PUMP symbol once on the switchboard to activate. Must be on for tap, shower, and toilet flush. Turn off when not in use. Do not run empty.
• Tap water: Not suitable for drinking.
• Gas bottle: Located in the exterior LP gas locker on the rear driver's side. Never drive with the gas bottle open.
• Hot water heater: Switch located below the rear seats. Gas takes 20–25 minutes. 240-volt activates automatically when plugged in.
• Toilet cassette: Must be emptied and cleaned before returning to the depot.
• Smoke alarm: Powered by a replaceable 9V battery. Do not disconnect. Keep connected at all times.
• Fridge: Use AUTO mode at all times. Requires level ground for gas and 240-volt operation. Vehicle may have either a 3-way or 2-way fridge - check which applies to your vehicle.
• Air conditioner: 240-volt only. Always turn off via remote before unplugging from mains.
• Emergency contact: STAR RV Roadside Assistance - call for wrong fuel, overheating, oil pressure warning, or any red dash light.

1. Description of keys

IGNITION KEY:

Start the vehicle and lock/unlock the fuel tank cap (remove the key from the shell to use on the fuel cap).

SIDE ENTRY DOOR:

Lock/unlock the vehicle's side entry door.

TOILET CASSETTE COMPARTMENT:

Lock/unlock the toilet cassette compartment (key has THETFORD engraving).

EXTERNAL STORAGE COMPARTMENTS:

Lock/unlock external storage compartments including the LP gas compartment (rear driver's side), storage compartment (rear passenger's side), and small storage compartment beside the driver's cabin door.

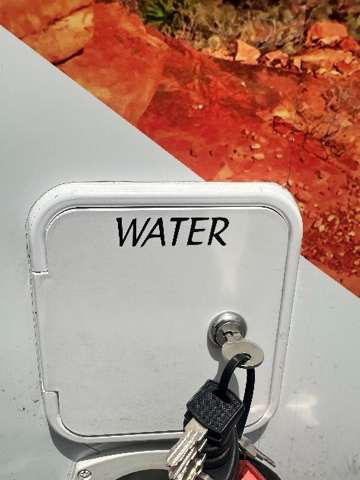

WATER TANK KEY:
Lock/unlock the vehicle's freshwater filling point.







BOTTOM STORAGE COMPARTMENT:

Lock/unlock the horizontal bottom storage compartment on the driver's side.

2. Vehicle equipment

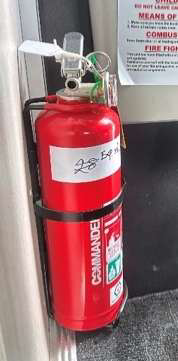

Fire extinguisher

Each vehicle is equipped with a dry chemical fire extinguisher, selected to address both Type B fires (grease and liquids) and Type C fires (electrical). The fire extinguisher is attached to the interior of the vehicle.

To deploy the extinguisher:

1. Grasp the ring at the top of the bottle.
2. Direct the nozzle towards the top of the flames.
3. Press the lever down firmly.
4. Guide the nozzle from side to side across the base of the flames.

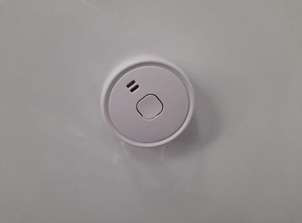

Smoke Alarms

Each vehicle is furnished with a smoke alarm powered by a replaceable 9-volt battery. If a replacement is needed during your rental, purchase a new battery, retain the receipt, and reimbursement will be arranged upon vehicle return.

Do not disconnect the smoke alarm. It must be connected at all times for your safety.

3. Starting the vehicle

The gear stick must be in PARK and your foot on the brake pedal in order for the vehicle to start.

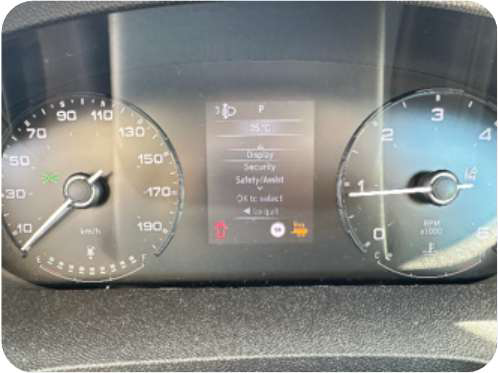

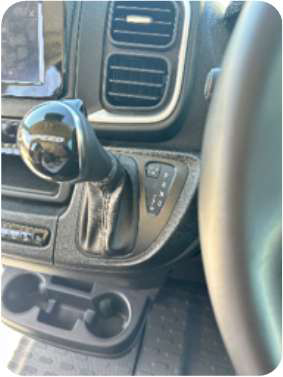

Gear stick in parking mode

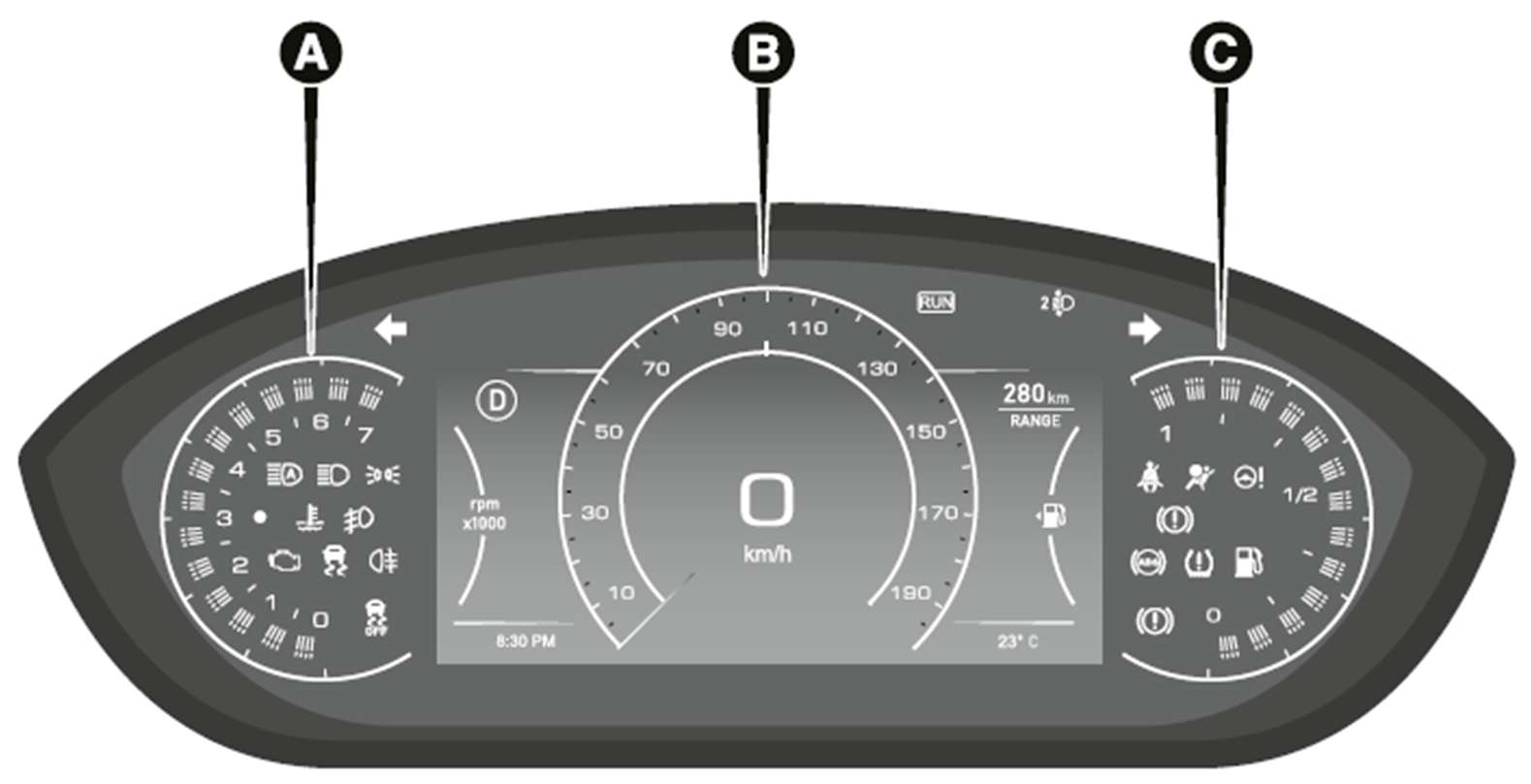

1. The dashboard will display a 'P' indicating that the vehicle is in park.
2. Start the vehicle using the ignition key.
3. With your foot still on the brake pedal, pull the gear stick down into the 'D' position. The dashboard will display a 'D' indicating drive.

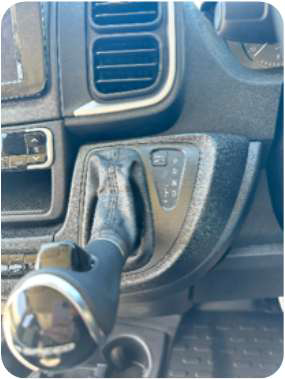

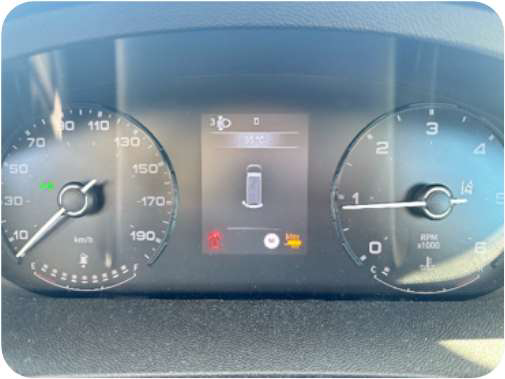

Gear stick in driving mode

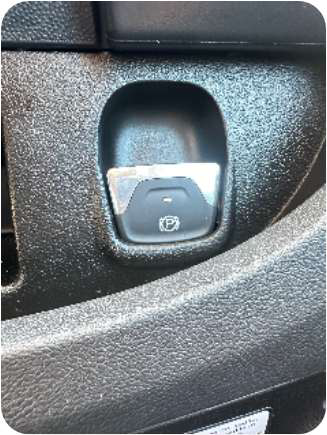

NOTE: Do not forget to disengage the handbrake before you drive.

4. Windows & Vents

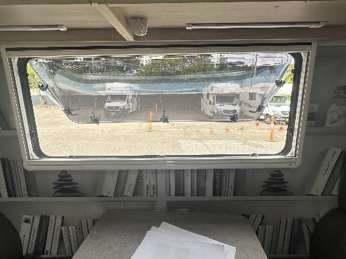

Windows:

To open the windows, turn the handles inwards. Push the window out and click the latch in place. Each window has a mosquito net and a sun blackout blind. These can be used separately.

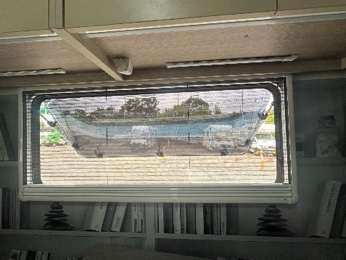

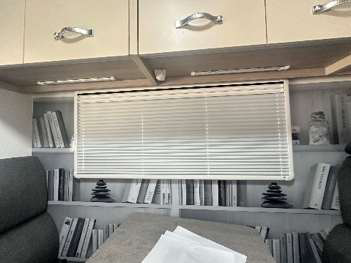

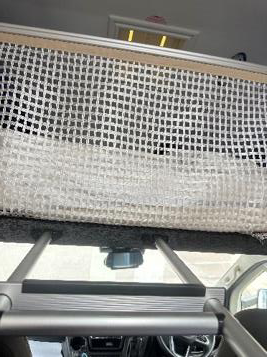

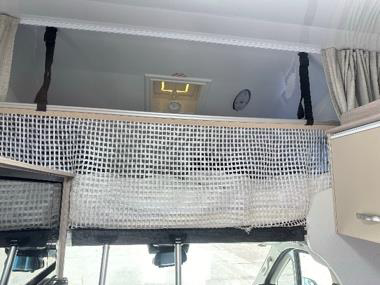

• To use the mosquito net: Pull the white blind down using the handle indents.
• To use the sun blackout blind: Pull the blind up using the handle indents.

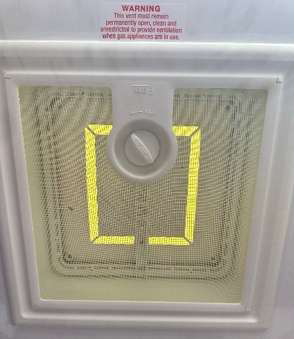

Vents:

• To open: Twist the handle anticlockwise.
• To close: Twist the handle clockwise.

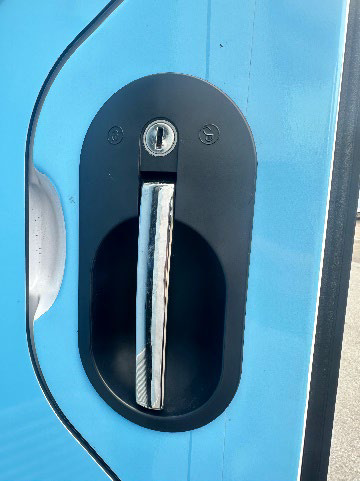

5. Entry Door

To open the door from outside: Pull the door handle outward.

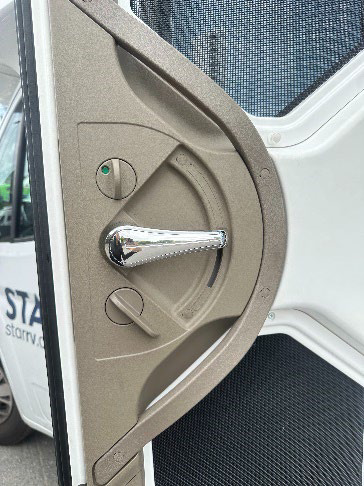

To open the door from inside: Pull the door handle downwards and apply slight pressure to the door. When the door is locked, neither the inside nor outside door handle can be operated.

To lock from outside: Turn the key anticlockwise towards the lock symbol on the entry door lock.

To unlock from outside: Turn the key clockwise towards the unlock symbol on the entry door lock.

NOTE: Doors may vary between models.

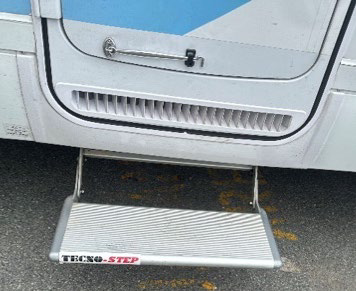

6. Outdoor step

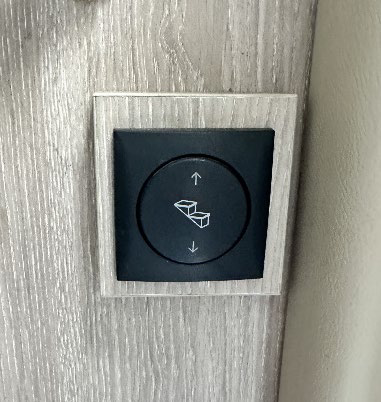

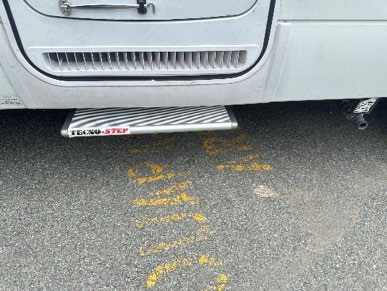

The motorhome is equipped with an electric side doorstep.

• To open: Press the down button. The switch is located on the right-hand kitchen wall.
• To close: Press the up button.

NOTE: Do not try to manually open or close the step.

7. Seatbelts and Baby seats

It is the law in Australia that all passengers in a motorhome must be properly restrained with seatbelts. Vehicles are equipped with both lap and shoulder belts. Only seats fitted with seatbelts can be occupied while the vehicle is moving. Insert the belt tongue into the correct buckle until you feel it click and latch.

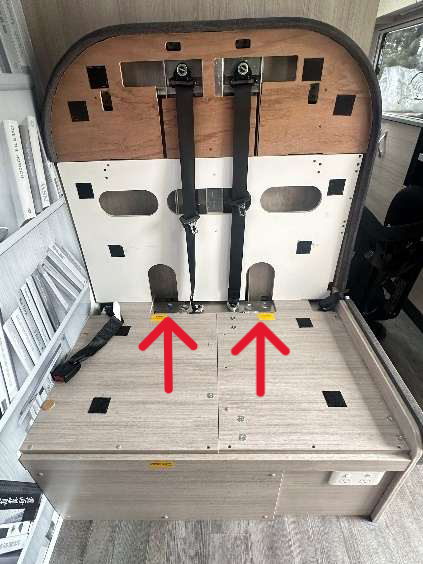

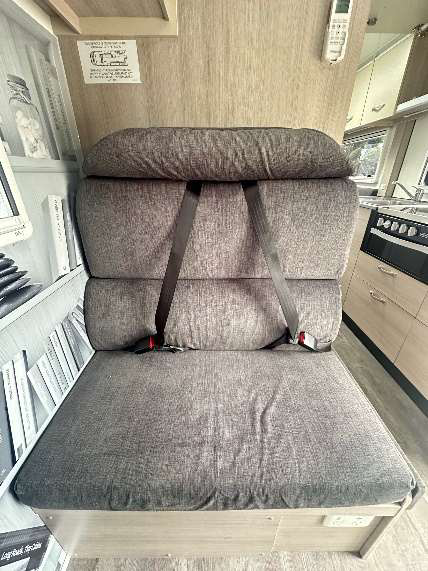

The two anchor points for baby seats are located on the forward-facing seat at the dinette behind the driver's cabin.

NOTE: The table must be removed at all times while passengers are sitting at the dinette seats while in transit.



To install a baby seat:

1. Remove both back cushions for easy access.

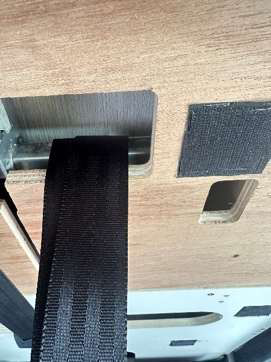

2. Feed the tether strap over the metal bar and drop it down onto the anchor point at the bottom.

3. Firmly attach the tether strap to the anchor point.

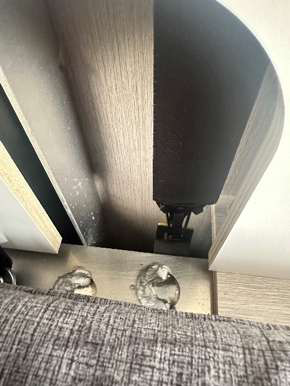

4. Pull the strap to tighten the seat as much as possible, then put the backrest cushion back in place.





5. Thread the motorhome's seatbelt through the forward-facing seatbelt path on the baby seat from one end and buckle on the other side. After pulling the belt through and buckling it, push down on the baby seat and pull on the belt so that it locks.

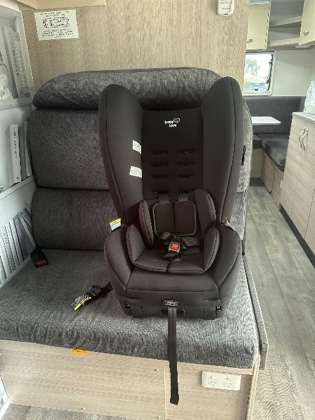

6. Once the baby seat is firmly secured, place the remaining part of the back cushion in its original position.











8. 240-volt electrical system

To run the microwave, power points, air conditioner, and to recharge the house battery, connect the motorhome's 15AMP electricity cord to a 240-volt external power source. These devices will only work when connected to 240-volt power. It is recommended that every second night the vehicle is charged at a powered outlet to keep batteries charged.

To use the 240-volt electrical system:

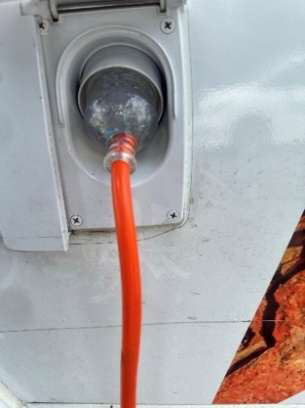

1. Connect the motorhome's 15AMP electrical cord to a 240-volt external power source at a caravan park.

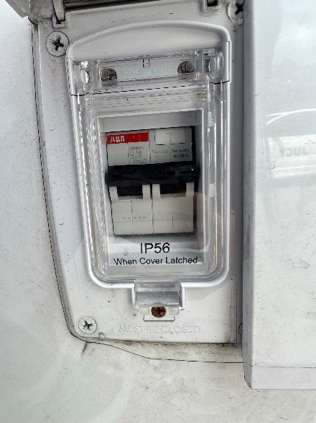

Circuit breakers: The 240-volt outlets and appliances are protected by two circuit breakers located outside the motorhome. If a power surge trips the circuit breakers, locate them outside and switch back to the ON/UP position. Overloading the system (e.g. using the air conditioner and microwave at the same time) can cause circuit breakers to trip.

Troubleshooting: If experiencing difficulty charging the vehicle:

1. Ensure the power point at the caravan park is in working order.
2. Unplug the van from the powered outlet.
3. Attach an alternative device (mobile phone, toaster, etc.) into the power lead on the van and check the lead is working.
4. Plug the device directly into the powered outlet at the caravan park.
5. If there is an issue with the powered outlet, inform caravan park staff.

12-Volt Electrical System

The motorhome has three batteries - one in the engine compartment and two in the rear of the cabin (the auxiliary batteries). The engine compartment battery is located under the passenger's side cabin floor in the main driver's cabin.

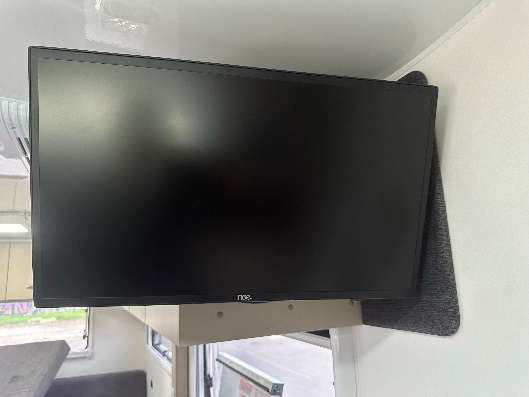

The auxiliary battery operates the TV, water pump, fridge, and interior lights. It is charged by both the alternator when the vehicle is being driven and by the 240-volt system when plugged into mains power.

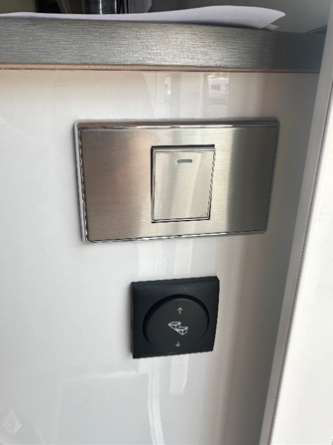

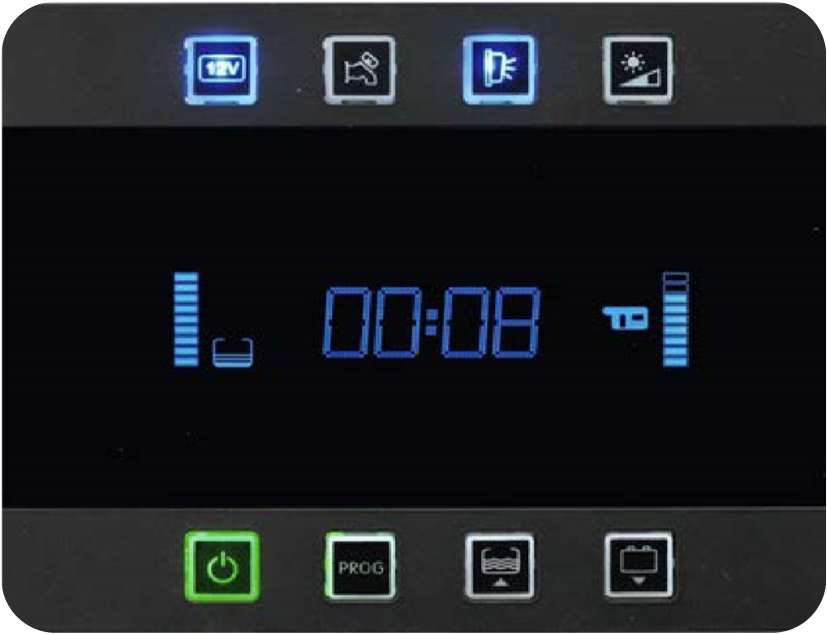

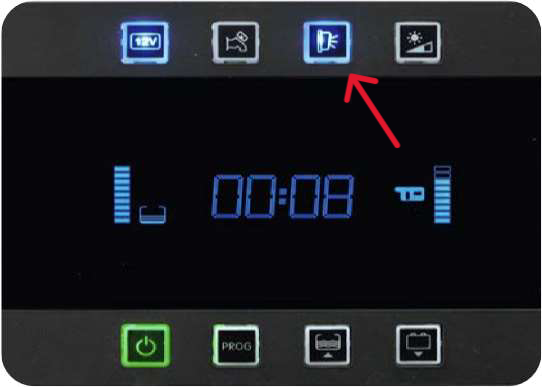

The 12-volt electrical panel is located on the side wall as you enter the motorhome. To turn it on, hold down the red power button for approximately 3 seconds until information appears on the screen on the left-hand side of the panel. This panel operates the water pump and lights and must be turned on at all times to operate any device on the 12-volt system.

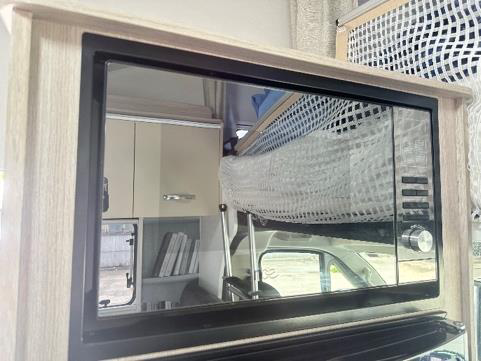

10. Microwave

The microwave operates via 240-volt power only. The vehicle must be plugged into a powered site at a caravan park or campground.

Do not put the following in the microwave:

• Paper bags (except purpose-designed microwave bags such as popcorn bags)
• Aluminium foil
• Dishes with metal rims
• Plastic containers
• Wire ties from bread and metal utensils
• Styrofoam plates and cups
• Glass jars

Safe to use in the microwave:

• Microwave-approved glass, ceramic plates, and bowls
• Microwave browning dishes
• Microwave plastic wrap, wax paper, paper towel, and napkins
• Paper plates and cups

Troubleshooting:

• Microwave has no display: 240-volt power is not plugged in. Check the vehicle is connected to mains power and the powered outlet is working.
• Microwave has power but is not heating food: Microwave may be broken. Call the JUCY on roads team for assistance.
• Sparks or arcing when microwave is turned on: A metal object is in the microwave.

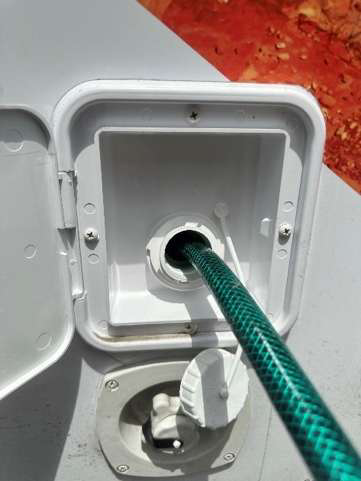

11. Fresh water tank and access

The vehicle has an onboard freshwater system consisting of a water pump and freshwater tank. The water tank has a 120L capacity and is located on the passenger side of the vehicle. This water is for the sink, shower, and toilet flush. Fill up as often as possible.



To access fresh water from the sink, lift the lever on the tap.

NOTE: You can check the water level on the 12-volt switchboard. You must manually empty the grey water tank by connecting the grey water hose to the grey water outlet.


12. Greywater Tank

The grey water holding tank collects wastewater from the kitchen, bathroom sink, and shower. You can check the level on the 12-volt switchboard - this is the first tank level on the control panel.

NOTE: the grey water level indicator may give an inaccurate reading and show 100% even when empty. Empty the grey water tank as regularly as possible.

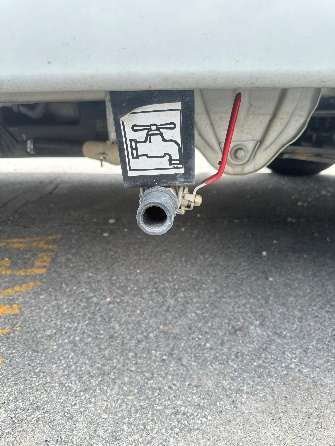

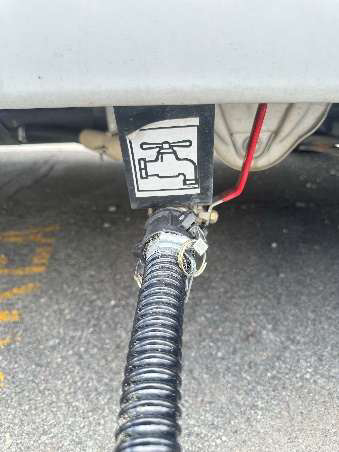

To empty the grey water tank:

1. Collect the grey water hose from the storage compartment.

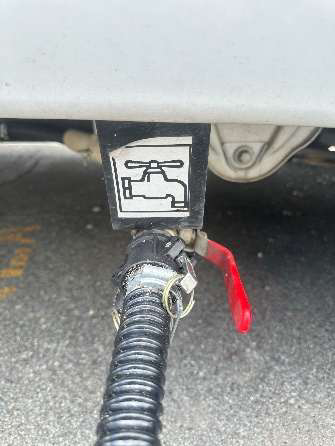

2. Connect the hose to the outlet. Make sure it is firmly attached by pulling down the silver levers on each side of the attachment.



3. Place the other end of the hose into the dump station disposal opening.
4. Open the tank by turning the red lever towards you so it is parallel with the pipe. Wait for it to empty.
5. Once the grey water is empty, close the lever, remove the hose, and stow it away in the storage compartment.

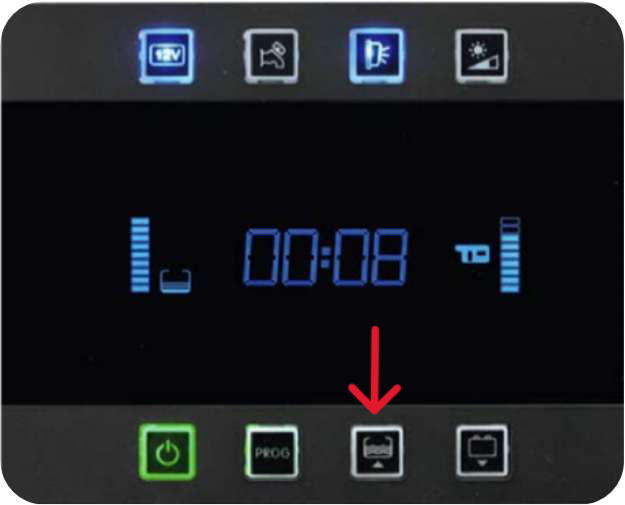

13. Water Pump

To use water on board the vehicle, ensure there is water in the freshwater tank. On the switchboard, press the PUMP symbol once. You will hear the pump quietly start up. The pump operates as part of the 12-volt system. When you are not using the water pump, ensure it is turned off.

The water pump must be on to operate the kitchen tap, shower, and toilet flush.

NOTE: Avoid running the pump when the water tank is empty. Operating the pump continuously with no water can cause damage.

14. Hot Water Heater

The switch to activate the gas-operated water heater is located below the rear seats.

To operate the hot water heater:

1. Turn the gas bottle (located in the rear doors under the bed) to the ON position. Twist the valve counterclockwise to open and clockwise to close. The system will not function if there is insufficient gas.
2. Activate the water pump switch on the 12-volt switchboard.

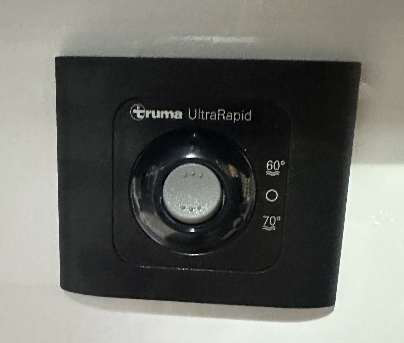

3. Adjust the Boiler switch upwards to the 60-degree mark.



4. A brief red light will flash on the Boiler switch then extinguish, indicating the system is operating. If the red light persists (burner has not ignited), cease all operations, reset the switch to the neutral O position, and retry. You may attempt this up to three times. If ignition is not achieved by the third attempt, allow the system to rest for 10–15 minutes before retrying.

Water typically takes around 20–25 minutes to reach the desired temperature.

NOTE: The motorhome also has a 240-volt hot water system. When connected to mains power, this will automatically activate and heat the water. If water has already been heated via 240-volt, the gas hot water operation will be inactive.

15. Toilet use

1. Turn on the water pump on the 12-volt control panel.

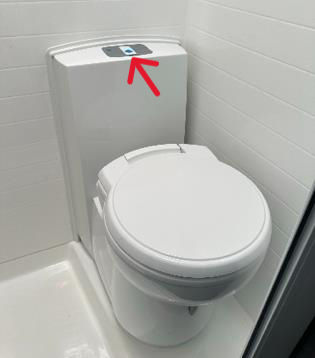

2. Push the blue button on the toilet to fill the base with water (Diagram A).

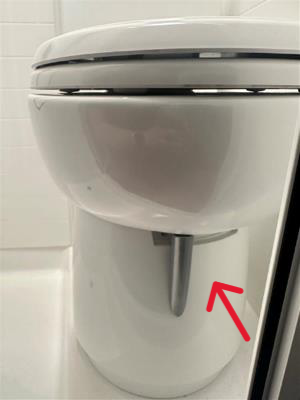

3. Once finished, adjust the lever on the bottom of the toilet to empty into the cassette (Diagram B)

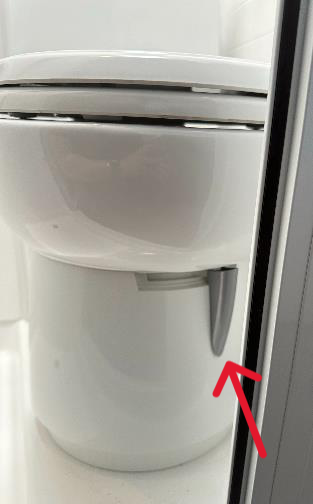

4. Ensure the lever is in the closed position after use.

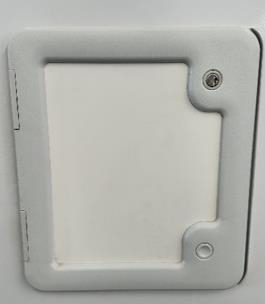

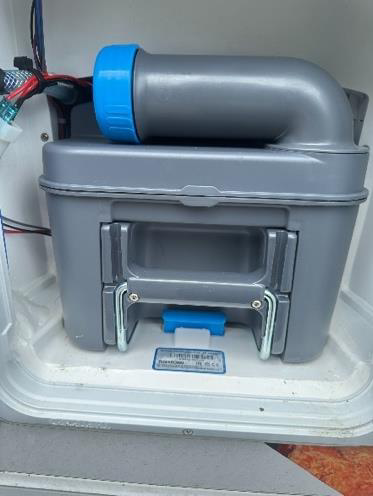

16. Toilet cassette

It is highly recommended to regularly empty the toilet cassette. It is mandatory to empty and clean it before returning the vehicle to the depot.

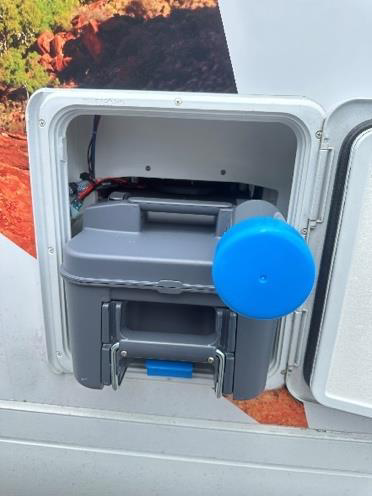

To empty the cassette:

1. Lift the blue lever and remove the entire cassette from the vehicle.
2. Rotate the pour-out spout and unscrew the cap.
3. Dispose of waste at a designated black water dump point.
4. Rinse the cassette thoroughly and repeat the emptying process.
5. Add a toilet chemical along with half to one litre of water.
6. Click the cassette back into position so it aligns with the toilet above.

If the cassette becomes jammed: Do not apply excessive force. Ensure the toilet cavity inside the vehicle is securely closed, then remove the cassette.

Please note: It is crucial for the cassette to click back into position to align with the toilet above.



17. Gas bottle

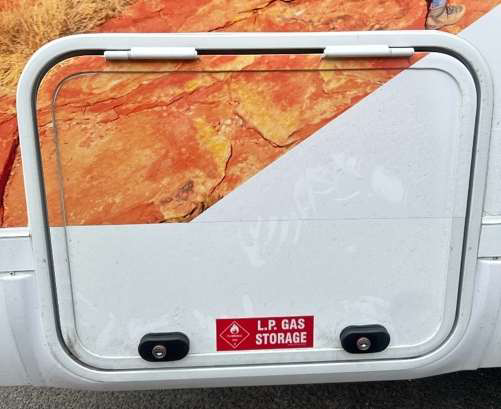

The gas bottle is located on the exterior of the vehicle in a locker marked with an LP gas storage label.

IMPORTANT: Never drive with the gas bottle turned to the open position.

• To open: Rotate the valve fully anticlockwise.
• To close: Turn the valve clockwise until securely tightened.

If you smell gas:

1. Extinguish all open flames and smoking materials.
2. Do not touch any electrical switches.
3. Shut off the gas supply at the gas bottle valve.
4. Open doors, windows, hatches, and all other ventilation openings.
5. Evacuate the area until the gas odour dissipates.
6. Contact JUCY for assistance.

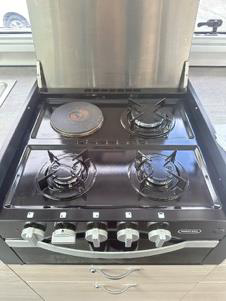

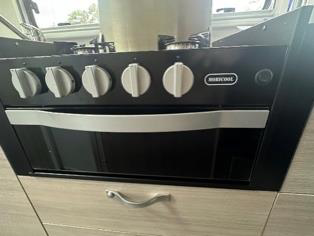

18. Stove top and grill

Warning: Do not use cooking appliances for comfort heating. Always have sufficient ventilation when using the stove. The stove top lid must be in a fully upright position for the hotplate and grill to ignite.

How it operates
The gas burners in the vehicle operate on LPG. The basic operation is the same as a gas stove in a house. However, the amount of oxygen in a motorhome is limited due to its size; therefore, always have
sufficient ventilation when using the stove.


To use the stove top:

1. Locate the gas bottle on the outside of the van and turn the valve on top fully to the open position.

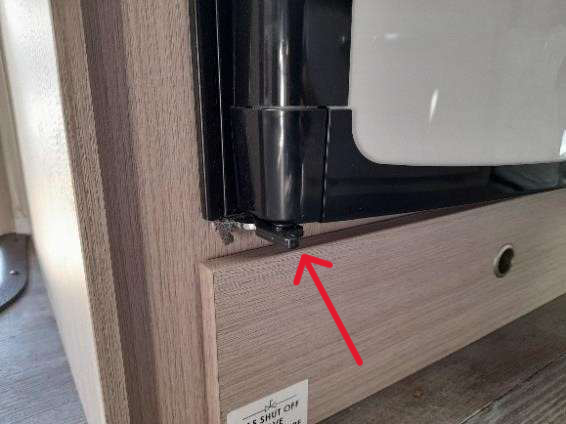

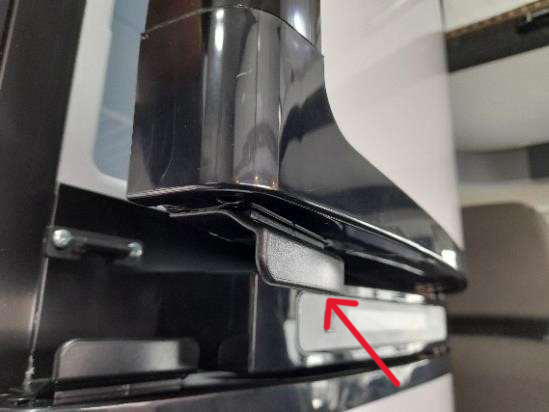

2. Lift the glass stove lid so it is fully upright. If the lid is partially open, the burners will not work.

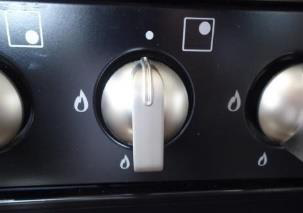

3. Push in, hold down, and turn the burner knob to your desired heat level.



4. While the burner knob is still being pushed in, press the igniter switch until the gas lights.
5. Keep holding down the burner knob.
6. Wait approximately 15 seconds before slowly releasing the burner knob.



Please note: If the flame extinguishes, the burner knob may have been released too soon. Start from step 2 and try again.

To operate the grill: Select the knob marked "grill" at the far end. Operate the same way as the stove top. Make sure the stove top lid is fully open when using the grill.

If using a match: Light the match first, hold it next to the burner, then open the burner valve. To prevent too much unburned gas accumulating, do not open the valve before lighting the match.

If the stove does not ignite there may be insufficient power in the battery to provide a spark. Connect to mains power or use a match.

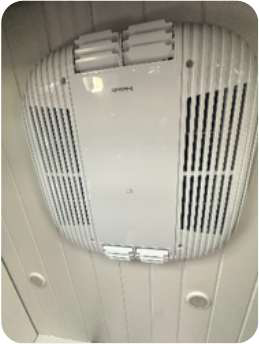

19. Heater & Air Conditioner

The vehicle is equipped with a reverse cycle air conditioner that generates both hot and cold air. The air conditioner only works when plugged into 240-volt power.

Operating the air conditioner:

1. Plug the vehicle into 240 Volt mains power.

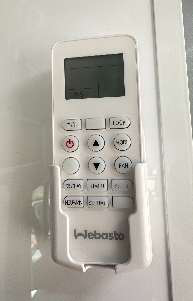

2. Turn on the unit by pressing the red power button on the remote control.
3. Select the mode.
4. Adjust the temperature using either the up arrow button (for higher) or down arrow button (for lower).

IMPORTANT: Always turn off the air conditioner using the remote before disconnecting the vehicle from 240-volt mains power.

In humid and hot conditions:

• Keep curtains and blinds closed if leaving the vehicle unattended for an extended period.
• Before activating the air conditioner, ventilate the interior by opening doors and windows to expel warm air.
• Once the internal temperature has decreased, close all windows and external doors before switching on the air conditioner.
• Adjust the temperature to 23°C with the fan at maximum speed. Do not set the temperature below this level.
• Following these guidelines reduces the risk of condensation and water overflow.

Note: During periods of high temperature, air conditioners may experience power fluctuations due to voltage drops, which can blow internal fuses.

In cold conditions: The air conditioning unit may cease functioning when temperatures drop below 4°C. Wait for the temperature to rise before attempting to use it again.

• The air conditioning units may cease functioning when temperatures drop below 4 degrees Celsius.

• If this occurs, wait for the temperature to rise before attempting to use the air conditioner again.



20. Fridge (3-Way)

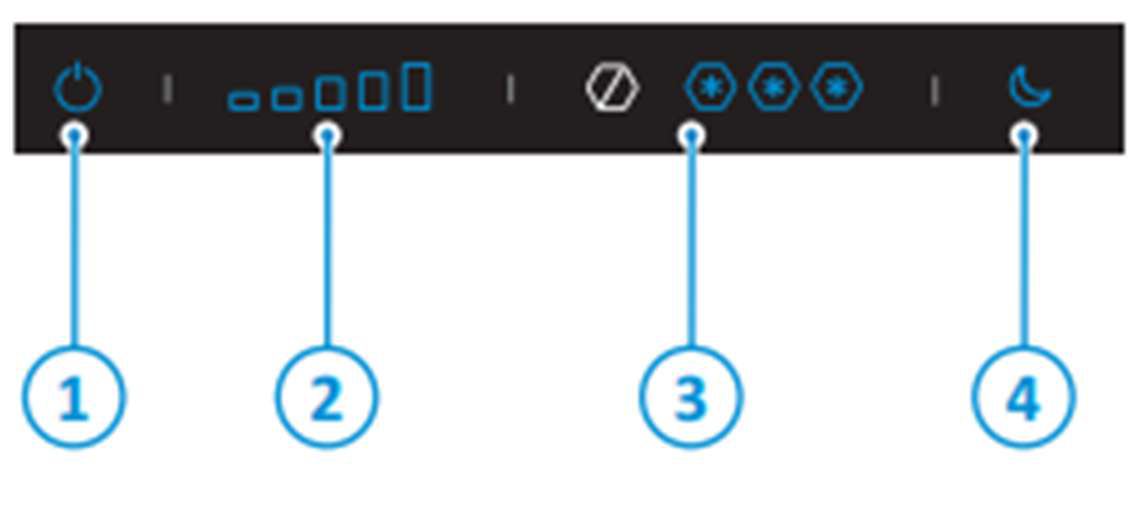

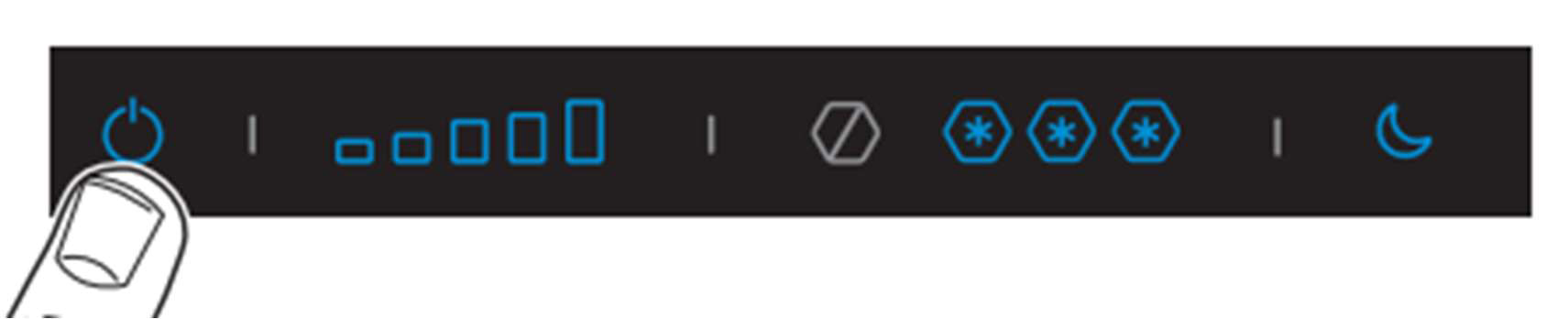

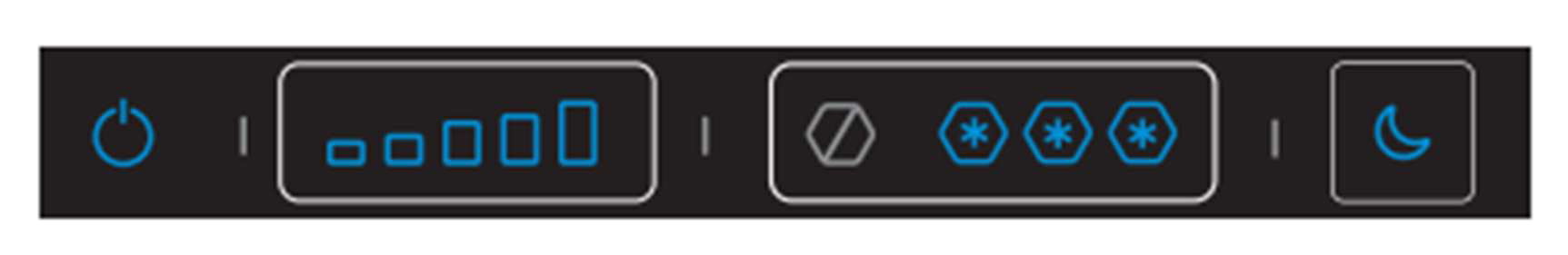

Your vehicle may be equipped with either a 3-way fridge or a 2-way fridge. Check which type applies to your vehicle and follow the relevant instructions below.

3-way fridge

The fridge operates via a three-way system (12-volt, gas, and 240-volt).

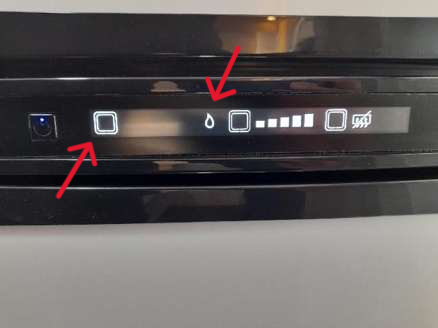

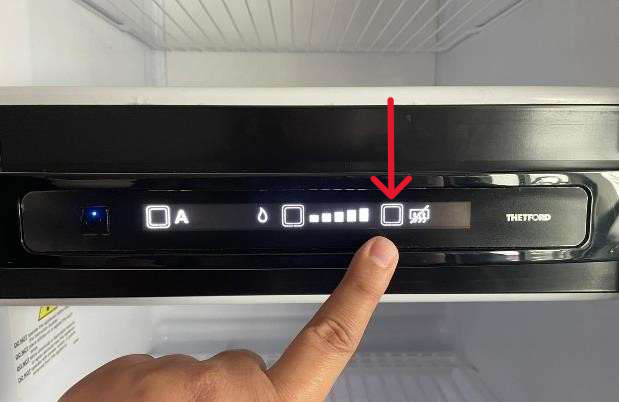

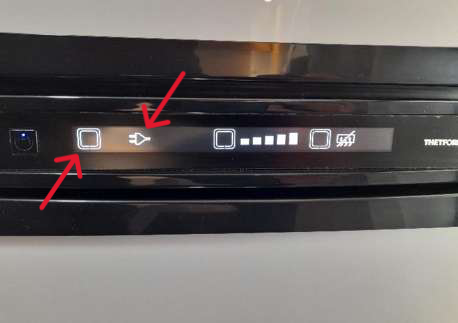

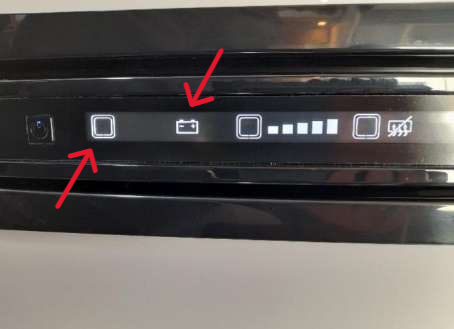

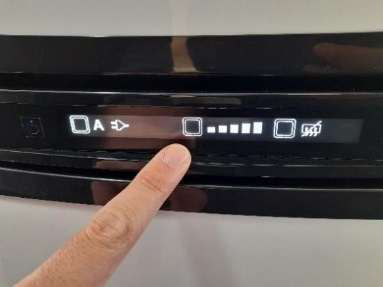

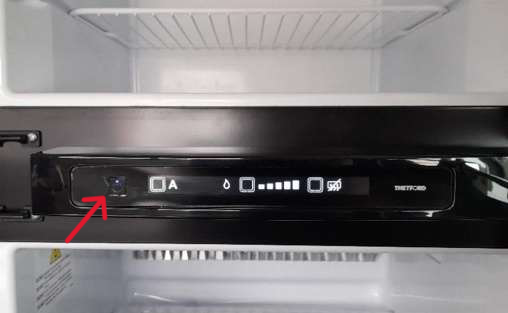

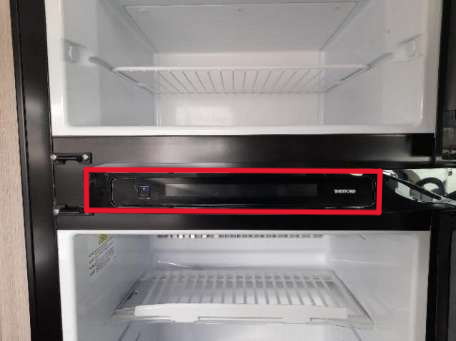

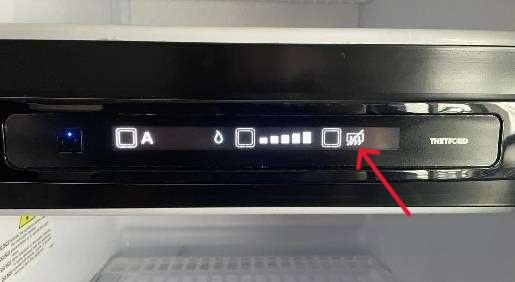

To turn on, locate the operation panel between the freezer and fridge.

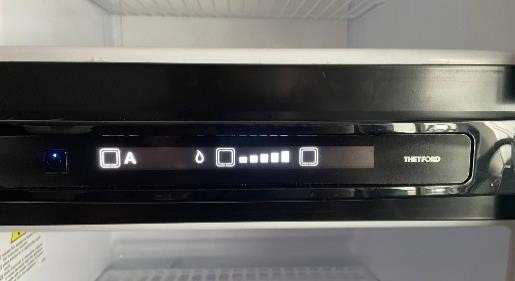

Hold down the ON/OFF button until the light in the ON/OFF switch turns on and the settings are shown on the display.

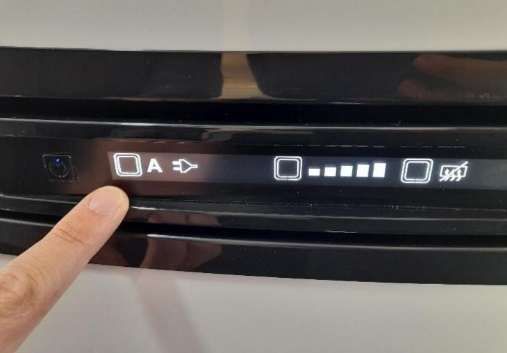

Press the source button several times until the 'A' symbol is displayed - this enables automatic mode, allowing the fridge to automatically choose the power source (gas, 240-volt, or 12-volt).

NOTE: 12-volt source will only work when the vehicle is being driven.

To manually switch fridge modes:

NOTE: It is highly recommended to use the fridge in Automatic ‘A’ mode. In ‘A’ mode the fridge will automatically select the best source available.

240-volt: To be only used when plugged into 240-volt mains power. To manually select the 240-volt operation, please press the source button several times until you see a ‘plug’ symbol on the display.
NOTE: The vehicle must be parked on level ground to operate the fridge on 240-volt mains power.




Battery: To be only used when driving the vehicle. To manually select the 12-volt operation, please press the source button several times until you see a ‘battery’ symbol on the display.
NOTE: If you try to use the battery when stationary it will not work. The fridge may beep and the display screen will continuously flash




Gas: To be only used when stationary and NOT plugged into 240-volt mains power. To manually select gas operation, please press the source button several times until you see a ‘flame’ symbol on the display.
NOTE: When using gas, ensure your gas bottle is open correctly. The vehicle must be parked on level ground to operate the fridge on gas.




To set the temperature: Press the Temp button until the desired temperature is reached. The more bars displayed, the cooler the fridge.

To open fridge and freezer: Pull the levers on the compartment doors.

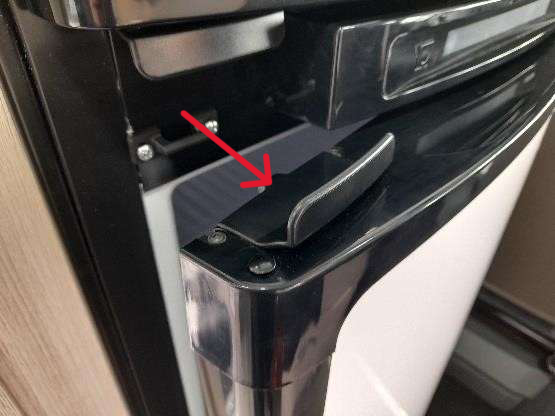

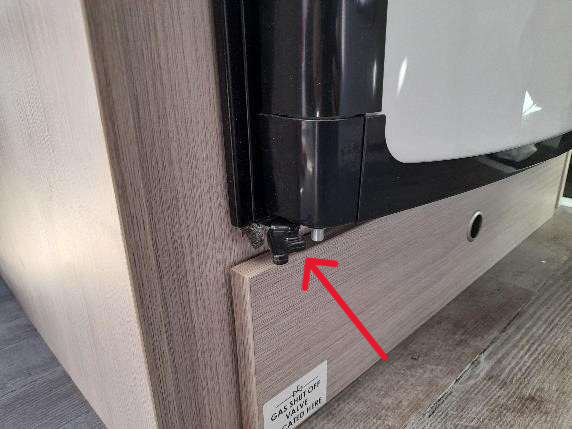

To lock: Lock the fridge compartment with the safety lock at the bottom to prevent the door opening while driving.

Please Note: Do not over fill the shelves inside the fridge. Excess weight can damage the fridge shelves. Evenly distribute weight on the shelves.

Anti-condensation button

To prevent the control panel from condensation, the anti-condensation function is automatically switched on. Keep this function on at all times unless there is very little energy available.

• To switch off: Push the anti-condensation button. The symbol on the control panel will light up.
• To switch back on: Push the button again.

Anti-condensation is ON when the three-swirl symbol is NOT displayed.

Anti-condensation function is turned OFF if the symbol with the three swirl lines is being displayed on the fridge panel.

Refrigerator general troubleshooting

It is highly recommended to use the fridge in Automatic 'A' mode. In 'A' mode the fridge will automatically selects the best source available.

Make sure the vehicle is parked on a level ground for your fridge to work properly when you are using either 240-volt mains power or Gas. The fridge will NOT work and it will NOT achieve optimum cooling temperature if the vehicle is parked on tilted/inclined surface.

If the outside temperature is more than 34 degrees, put an ice bag at the bottom shelf of your fridge and freezer to achieve optimum cooling performance.

Don't switch the fridge to 12v manually. It will drain the battery fast when not driving. Keep fridge in Auto mode and the fridge will automatically pick the right power source. When you arrive to a campsite, plug into a 240v power source or turn the gas on.

3-way fridge Troubleshooting - Error Codes

3-way fridge insufficient cooling:

21. Fridge (2-Way)

The fridge runs off the 12-volt battery until plugged into 240-volt power. Star RV recommends always plugging in overnight. If your vehicle is equipped with a two-way fridge, please follow the instructions below.

Control panel:

1. On/Off button.
2. Temperature settings (fridge).
3. Temperature settings (freezer).
4. Night mode.

To switch on/off:

1. Press and hold the On/Off button for a few seconds.

2. The blue light confirms the fridge is running.

3. To turn off, press and hold again.

To select cooling level:

1. Unlock the control panel: Press and hold the fresh food, frozen food, or night mode area until icons start blinking.



2. Press the temperature icons to set your desired cooling level. When locked, only the On/Off and night mode icons remain lit.

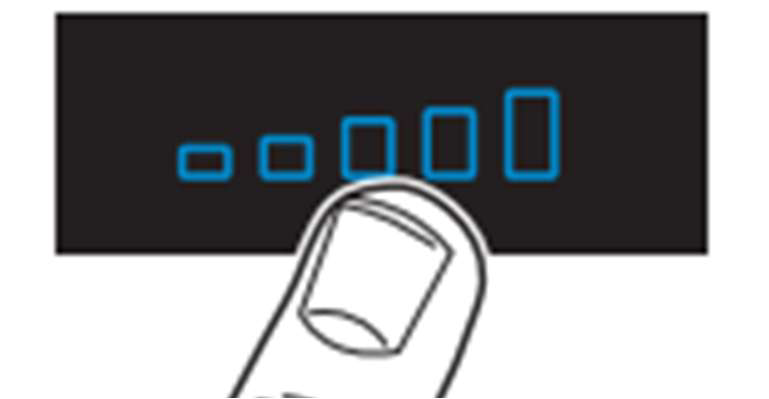

Fresh food compartment (levels 1–5):

• Adjust between level 1 (lowest) and level 5 (highest).
• Recommended: Level 3 (ambient 16–25°C).

Frozen food compartment (levels 1–3):

	Off: Hold for a few seconds. Ideal for saving energy off-grid.
	Low (approx. -6°C): Good for ice cubes and light freezing.

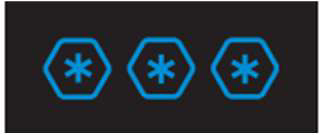

	High (approx. -18°C): Best for long-term storage or ice cream. Uses most energy.

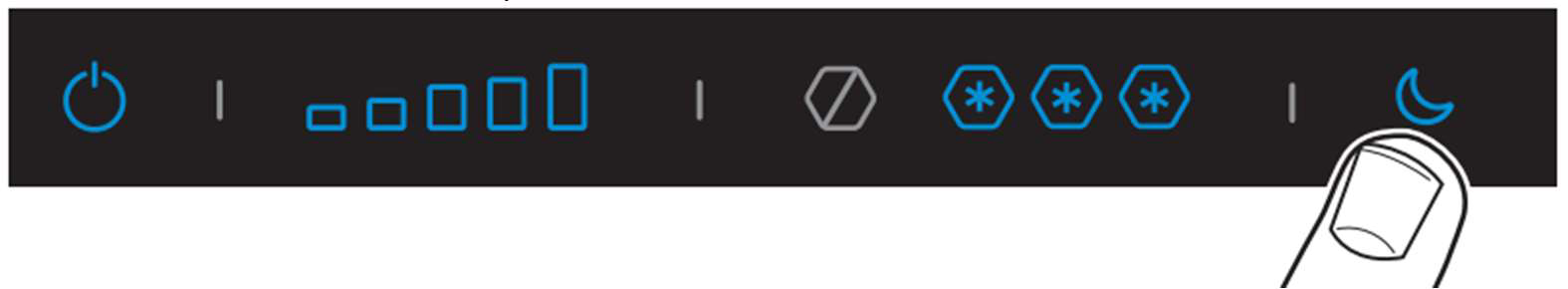

Night mode: Reduces noise by running on the quietest setting. Cooling may take longer. Unlock panel, then press the night mode button (blue light on).

NOTE: Do not over fill the shelves inside the fridge. Excess weight can damage the fridge shelves. Evenly distribute weight on the shelves.

Refrigerator general troubleshooting

• The fridge will run off the 12-volt battery until plugged into 240-volt power. Star RV recommends always plugging in overnight.
• Always follow storage instructions on food packaging.
• Cover liquids and let warm food cool before placing inside.
• Avoid unnecessary door opening.

2-way fridge troubleshooting:

22. Lights

To use the cabin lights, turn on the 12-volt control panel by holding the power button. Then turn on the 12-volt button on the control panel to use lights inside the motorhome.

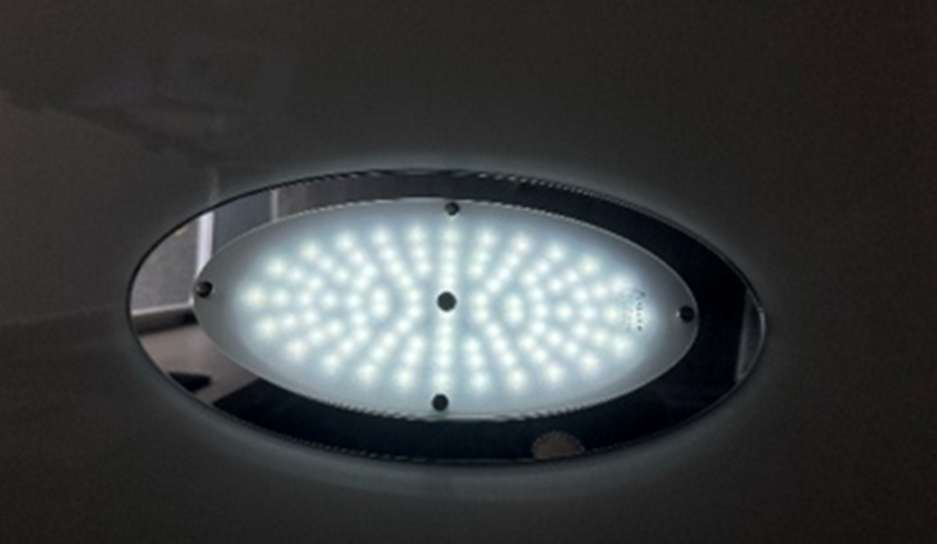

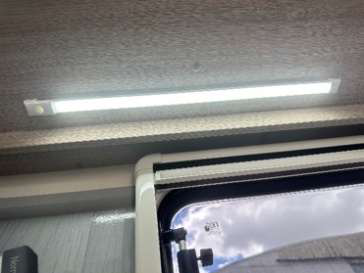

 Use the switches on the opposite wall of the motorhome to turn on individual lights. Each light can also be operated directly by pressing the button on the device.

NOTE: Once finished using the lights, turn them off at the device and at the 12-volt panel to conserve battery power.

23. Television

Each vehicle is fitted with a smart television. The remote is located in the kitchen drawer. The TV operates on both 12-volt and 240-volt mains power. It features apps including Netflix, Prime Video, Kayo, and more - accessible when connected to Wi-Fi and internet.

NOTE: Television reception may vary in rural areas. Bringing your own DVDs is recommended for use with the built-in DVD player.

24. Bed Conversion

The motorhome has three double beds.

Bed 1 - Middle dinette:

1. Remove the tabletop from the table leg by turning the top handle underneath the table anticlockwise 3 turns and remove. Do not fully unwind the handle or it will remove itself from the mechanism.
2. Remove the table leg from its attachment point by pulling it away.
3. Insert the tabletop between the two seats so it rests on the ledges to form the base of the bed.

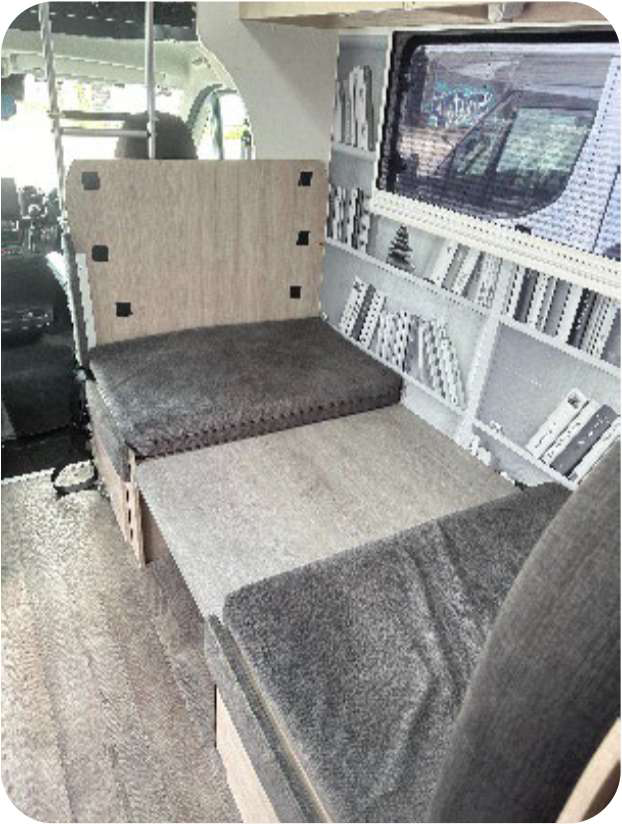

4. Arrange the seat cushions to make up the bed (Diagram A).

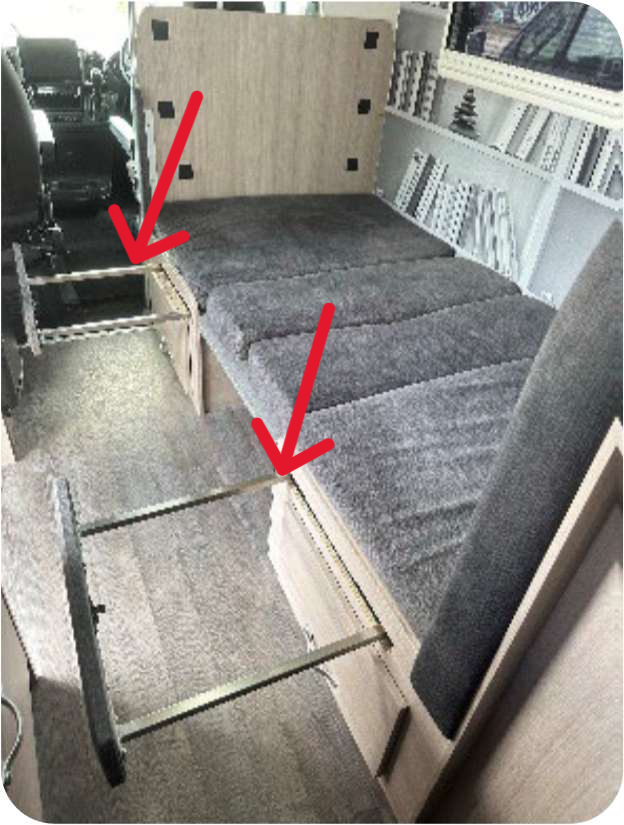

5. Extend the bed arms using the handles to establish the double bed (Diagram B).

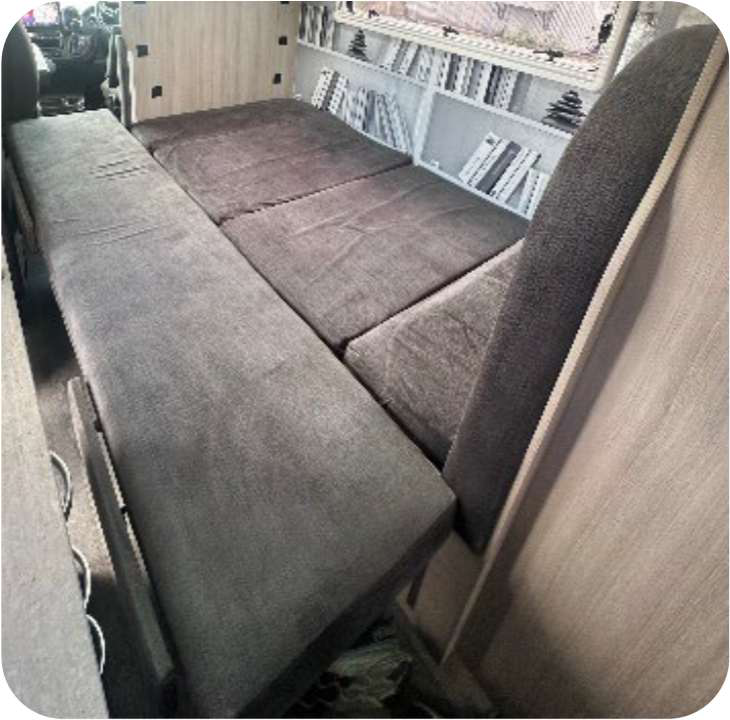

6. Finalise the bed using the backrest from the rear dinette (Diagram C).

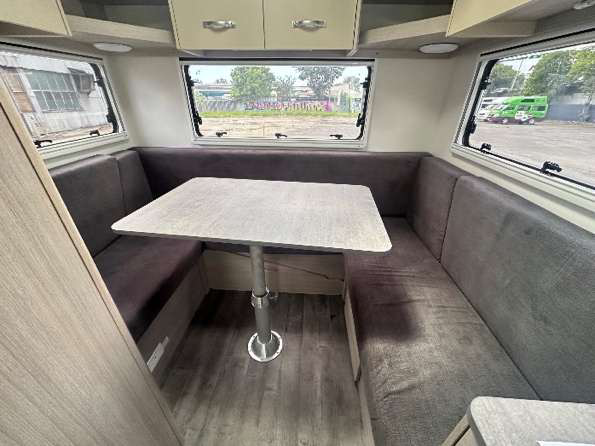

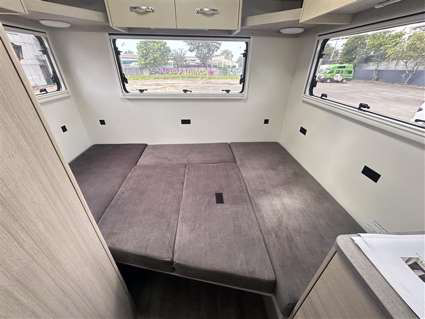

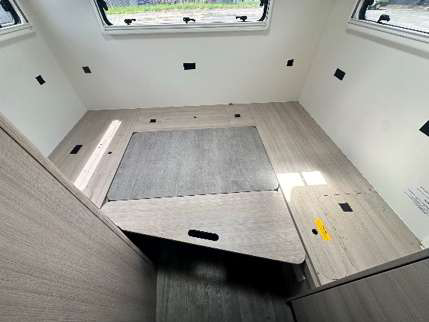

Bed 2 - Rear dinette:

1. Remove the tabletop from the table leg by turning the top handle underneath the table anticlockwise 3 turns and remove. Do not fully unwind the handle.
2. Remove the table leg from its attachment point by pulling it away.

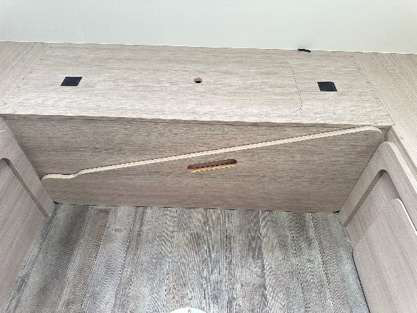

3. Locate the extension board and remove it from its storage point.



4. Rest the tabletop on the ledges of the seating area to form part of the bed base.
5. Use the extension board to make up the remainder of the bed base.



6. Use the backrest cushions to complete the mattress.

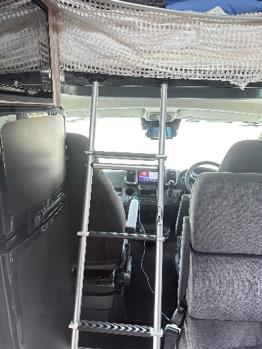

BED 3 - Overhead Bed

Access the overhead bed using the ladder stored in the overhead compartment. Connect the ladder to the attachment points horizontally to ensure it is secure. The bed can then be secured with the provided net.

25. Awning

To roll out the awning:

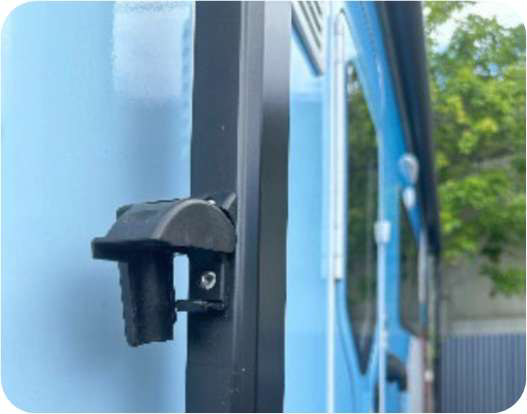

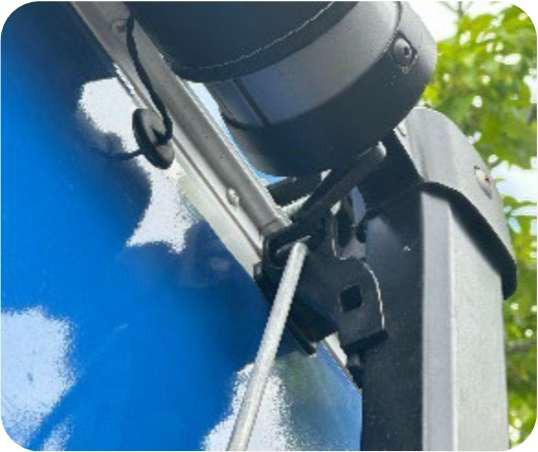

1. Release the catch and turn the knob anticlockwise on both ends of the awning arms.



2. Using the extension hook, pull the lever down to the "roll down" position.



3. Locate the black material strap and hook the extension hook into the hoop of the strap.

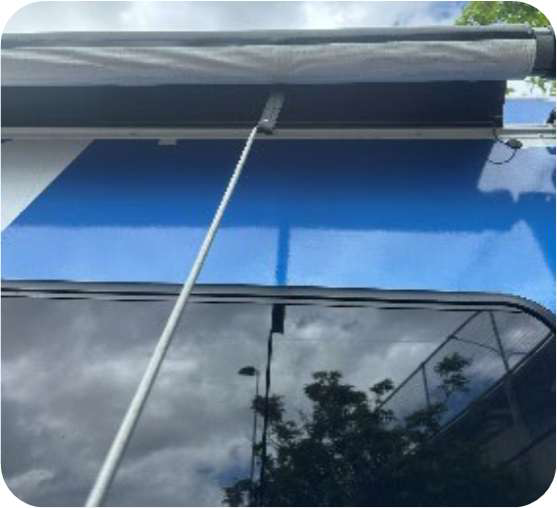

4. Use the extension to gently pull the awning all the way out.

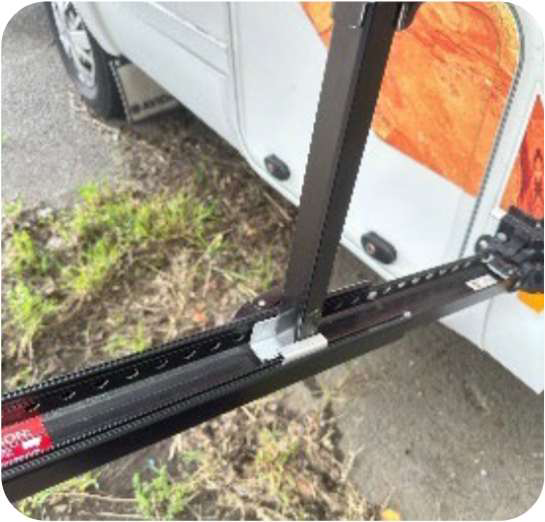

5. Slide the rafter arms up until they click securely into the locking catch.



6. Tighten the locking knobs on both rafter arms.

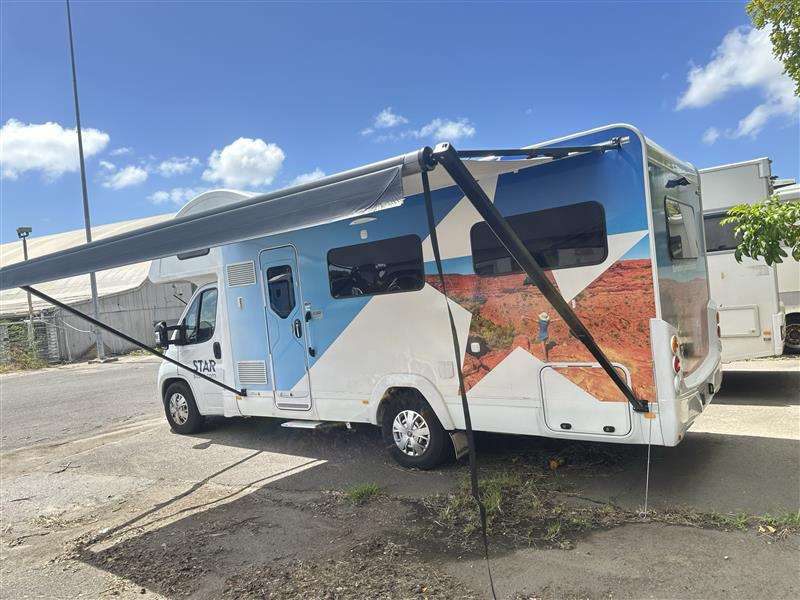

7. Using the handles on each of the main arms, lift and extend to the desired height. Release the handle to engage the lock.



To roll up the awning:

1. Loosen the locking knobs and lower the rafter arms all the way down.
2. Drag the strap to the locking mechanism lever and move to the "roll up" position.
3. Move back to the centre of the awning, holding the strap firmly.
4. Slowly allow the awning to retract. Once halfway, use the extension hook to retract the rest of the awning.
5. Once the awning has retracted, secure the locking knobs and levers on both ends.

26. Diesel fuel

The vehicle accepts diesel fuel only. DO NOT refill with any other fuel or fluid.

• The diesel tank cap is marked with "DIESEL" and is unlocked using the vehicle diesel key.
• The fuel filling location is next to the passenger door.
• Open the lid using your hands, then use the diesel key to unlock. Turn the key anticlockwise to unlock the cap.
• Once filled, place the fuel cap on the inlet and turn the key clockwise to lock.

IMPORTANT: The vehicle accepts diesel fuel only. If you fill the vehicle with unleaded, water or AdBlue, please do not start the engine and call STAR RV Roadside Assistance immediately.

27. AdBlue

Every 2,500 km the vehicle will require AdBlue to be refilled. If the AdBlue level is low, a warning light or symbol will illuminate on the dashboard with a message to top up. The AdBlue filler cap is below the diesel filler cap.

Find the nearest fuel station or auto shop supplying AdBlue and refill as soon as possible. Failure to refill the AdBlue tank will result in the vehicle going into limp mode.

IMPORTANT: AdBlue is NOT a diesel fuel additive. Do not add or mix AdBlue with diesel under any circumstances.

28. Changing a Tyre

Prepare the vehicle:

1. Stop the vehicle in a safe, flat, and stable area.
2. Turn off the engine and engage the parking brake.

Retrieve the tools (tool bag under the passenger seat):

• Rod for spanner
• Bolt spanner
• Jack
• The extension for the spanner is located on the back wall behind the passenger seat.

Change the tyre:

1. Loosen the wheel bolts by one turn using the bolt spanner, extension, and rod.
2. Extend the jack slightly and position it at the designated lifting point.
3. Raise the vehicle with the jack until the wheel is off the ground.
4. Remove the spare wheel from under the vehicle and free it from its holder.
5. Place the spare wheel, lining up the holes with the pins.
6. Tighten the bolts using the bolt spanner, extension, and rod — cross from one bolt to the opposite one.
7. Lower the vehicle and remove the jack.

Don't forget to:

• Tighten the wheel bolts fully.
• Put the punctured wheel back in its holder and tighten the knob.
• Store the tools back in their bag and place under the passenger seat.

29. Safety & Operational Features

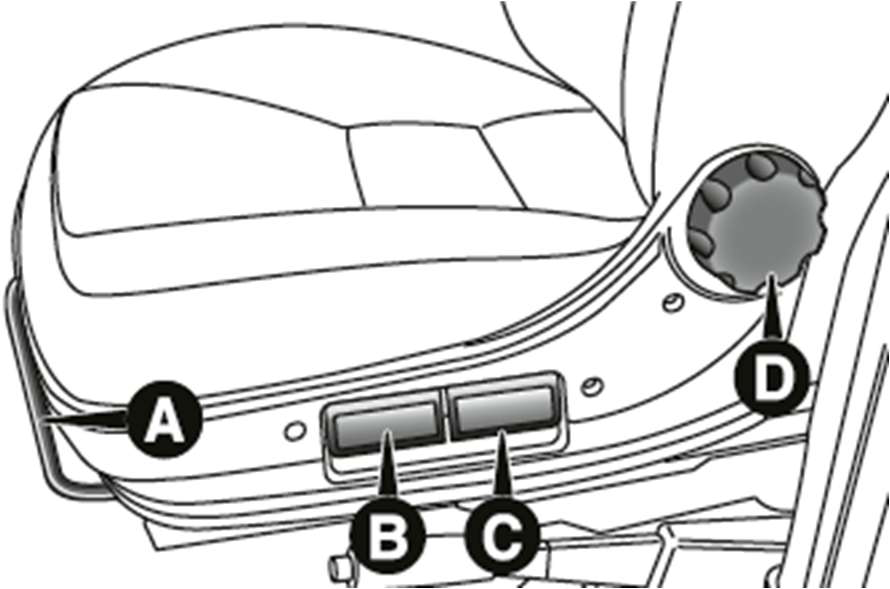

Seat adjustment

• Longitudinal adjustment: Lift lever (A) to slide the seat forward or backward. Arms should rest comfortably on the steering wheel when seated.
• Height - raise: Lift lever (B) (front of seat) or lever (C) (rear of seat) upwards and slightly lift your body.
• Height - lower: Press lever (B) or (C) upwards and shift your weight to lower the seat.
• Backrest angle: Use knob (D) to adjust the backrest angle.

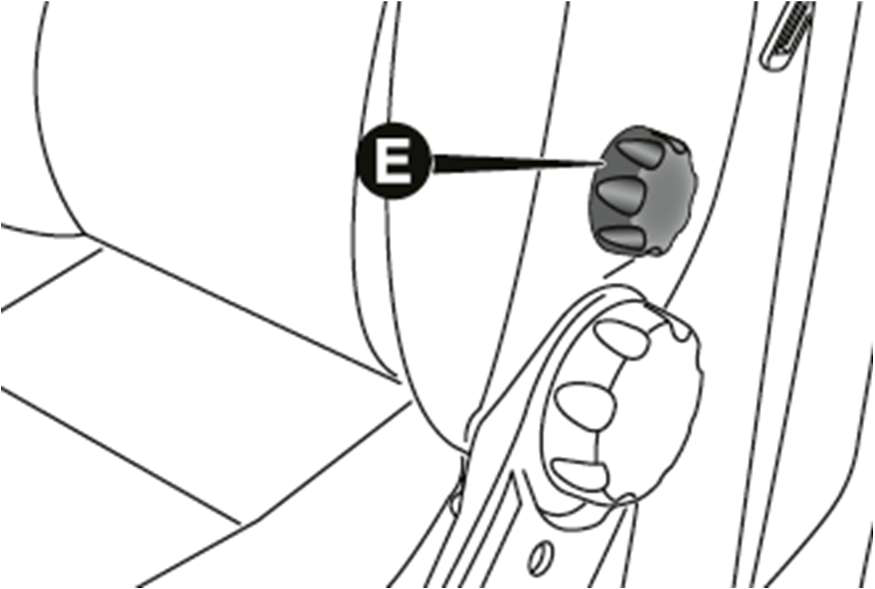

• Lumbar support: Turn knob (E) to customise lumbar support.

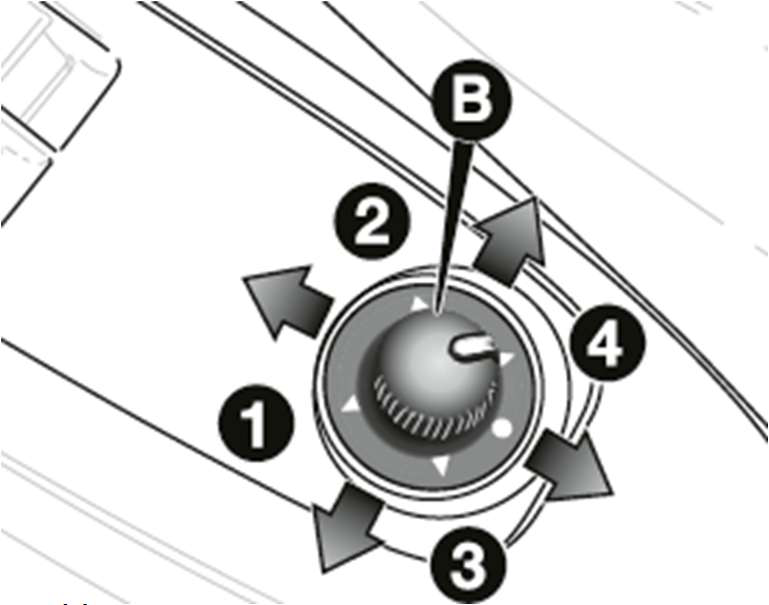

Exterior mirror adjustment

To optimise the view, adjust the outside mirrors to focus on the adjacent lane with slight overlap from the interior mirror's view.

Manual adjustment: Move the mirror glass to the desired position.

Power mirrors: Ensure the ignition key is in the MAR position. Use knob (B) to select and adjust:

• 1: Left mirror
• 2: Right mirror
• 3: Left wide angle
• 4: Right wide angle (available for specific mirrors)

Move knob (B) in the direction of the arrows to adjust the selected mirror.

External lights

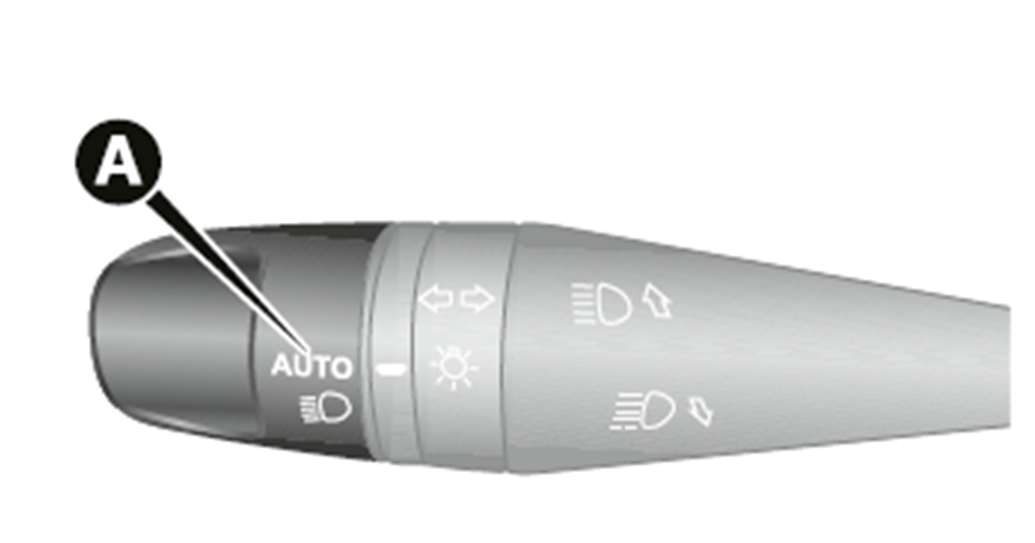

The auto function for headlights automatically adjusts the vehicle's lights based on surrounding light conditions. It activates headlights at dusk, in tunnels, or in low visibility.

To turn on: Rotate the ring of the left stalk to the AUTO position A.

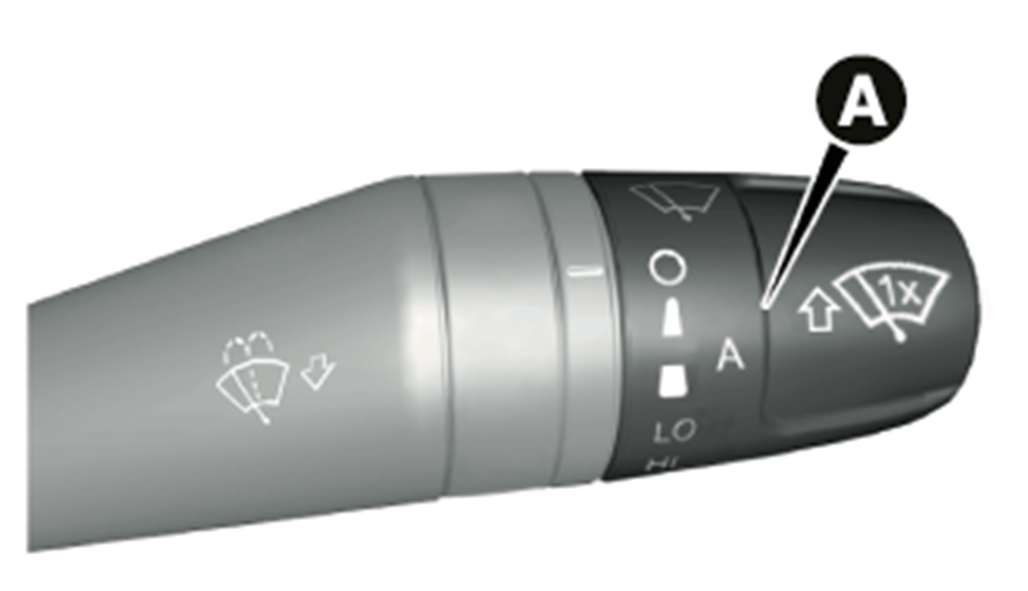

Windscreen wipers and washer

The right stalk controls the windscreen wiper and washer. It only works when the ignition is in the MAR position. Ring (A) settings:

• Wipers off.
• Wipes at a slow, steady pace.
• Adjusts wiping speed based on vehicle speed.
• Constant slow wipe.
• Constant fast wipe.

Smart washing function: Pull the stalk towards the steering wheel to spray washer fluid and activate the wipers.

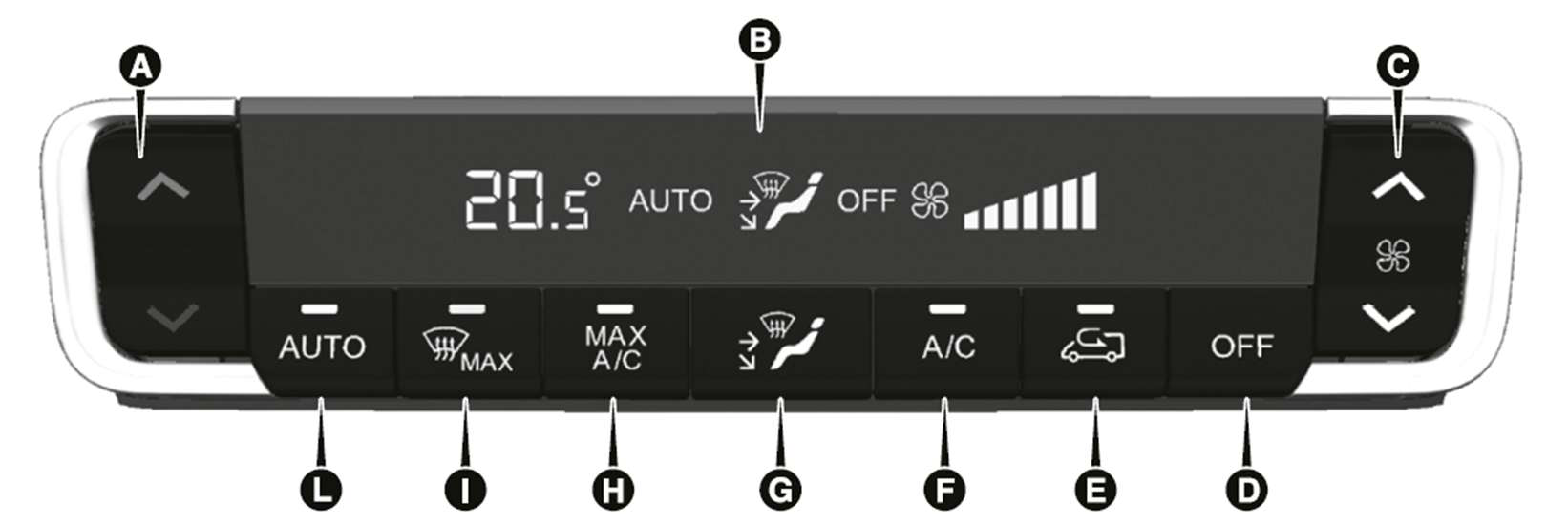

Air conditioning system

Controls:

• A: Temperature adjust button
• B: Display screen
• C: Fan speed adjust button
• D: Power off button
• E: Air recirculation button
• F: AC compressor on/off button
• G: Airflow direction button
• H: Max cooling on/off button
• I: Windscreen defrost button
• L: Auto mode on/off button

To use: Press AUTO (L) and set the desired temperature using button (A). The system will automatically adjust air temperature, airflow, distribution, and recirculation.

Temperature adjustment: Press (A) down to decrease, up to increase. Repeatedly pressing (A) switches between HI (maximum) and LO (minimum). Select a specific temperature to exit these modes.

Air distribution: Press button (G) to select: dashboard vents, footwell vents, windscreen, or max defrost. Modes can be combined. In AUTO mode, distribution is adjusted automatically.

Fan speed: Press (C) down to decrease, up to increase. Press AUTO to restore automatic fan control.

Air recirculation: Press (E) to toggle. Helps reach desired temperature faster. Avoid using recirculation in cold or rainy conditions to prevent window fogging. In AUTO mode, recirculation is managed automatically.

Display screen

• A: Tachometer
• B: Speedometer and multifunction display
• C: Fuel level gauge

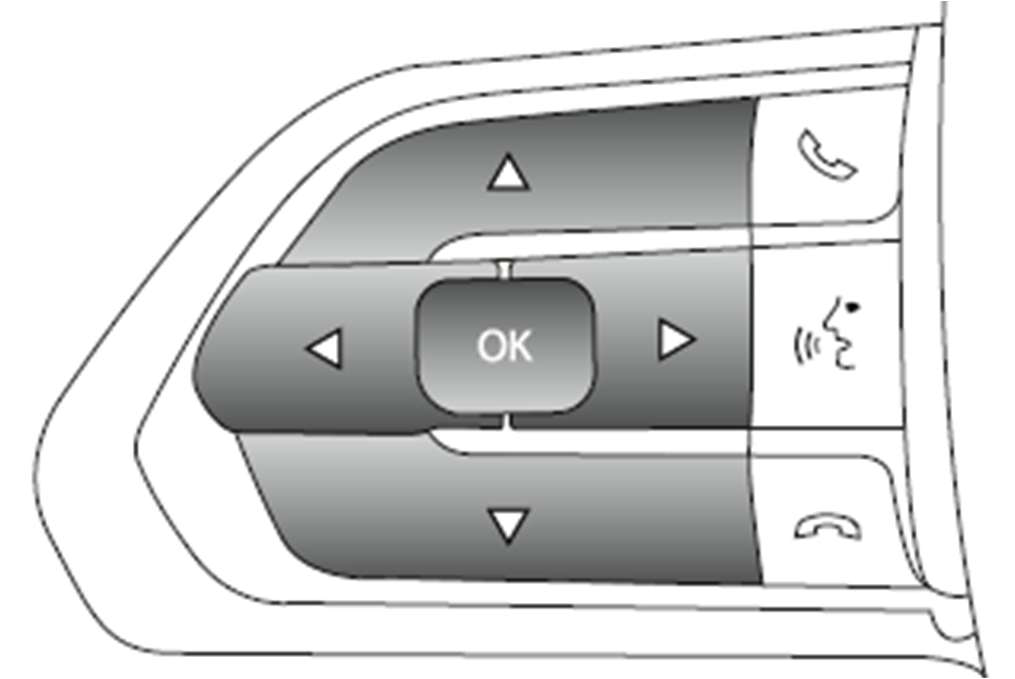

Control buttons:

• Up/down arrow: Scroll through the Main Menu and submenus.

• Right arrow: Access information screens or submenus.

• OK: Select items or access submenus.

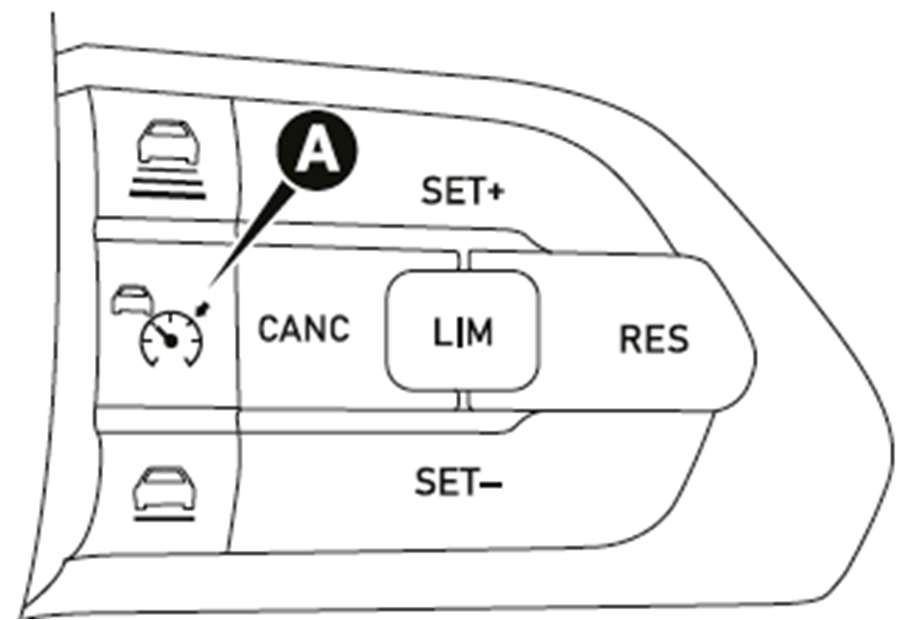

Electronic cruise control

Cruise control maintains a set vehicle speed without pressing the accelerator. Buttons are located on the right side of the steering wheel.

Activate: Press button (A). The symbol will appear on the instrument panel.

Set the desired speed:

1. Activate the system.
2. Once the vehicle reaches the desired speed, press and release SET + or SET –. The vehicle will automatically maintain that speed once the accelerator is released.
3. You can temporarily accelerate by pressing the accelerator. When released, the vehicle returns to the stored speed.

Warning: Ensure the vehicle is at a constant speed on a flat surface before pressing SET + or SET –.

Adjust speed:

• Increase: Press and hold SET +. Release to store the new speed.
• Decrease: Press and hold SET –. Release to store the new speed.

Deactivate: Press the CANC button or press the brake pedal. The system will also deactivate if the electric parking brake (EPB) is engaged or if the braking system is triggered.

Media

Pairing a Bluetooth device:

1. Turn on Bluetooth on your device.
2. Go to "Device Manager" under the "Phone" tab.
3. Tap "Add Device."
4. A temporary PIN will appear on screen. Enter this PIN on your device.

USB source:

• One USB port on the dashboard for charging only.
• One USB port lower on the dashboard for charging and data transfer.

When a USB device is plugged in, it will start playing automatically if AutoPlay is enabled. If off, only charging will occur when a smartphone is connected.

Phone mode: Tap the "Phone" button to activate. Use the display to dial numbers, view contacts and recent calls, and view text messages.

Apple CarPlay and Android Auto: Connect a compatible smartphone to the vehicle USB port. The phone's contents will automatically appear on the Uconnect™ system display.
